PAN MIXER
DZ 60VS
The Little Big One – 60 litres · 230 or 400 V · up to 16 mm aggregate size · compact & mobile
Our compact high-performance compulsory mixer stands out with its excellent price-performance ratio, intuitive operation and efficient mixing technology. Despite its compact size, it offers the full range of features.
![[Translate to English:] Zwangsmischer DZ 60VS](/fileadmin/_processed_/f/a/csm_diem_werke_maschinenbau_zwangsmischer_dz_60vs_fahrbar_01_3692b5d6af.png)
Universal Mixing System
The specially developed DIEM mixing system, featuring adjustable mixing components and a maintenance-free direct-drive gearbox, delivers excellent mixing results – even with very small batches and aggregate sizes of up to 16 mm.
Power Supply
Available in 230 V and 400 V.
Certified Safety
Our mixers are CE-compliant and equipped with state-of-the-art safety features, including a hinged safety guard with limit switch and a discharge safety guard.
Full Mobility
The robust four-wheel system allows easy manoeuvring, even on uneven ground – compact, mobile and designed for practical use.
Robust Construction
A durable mixing drum and solid base frame ensure long-lasting performance, even under continuous use.

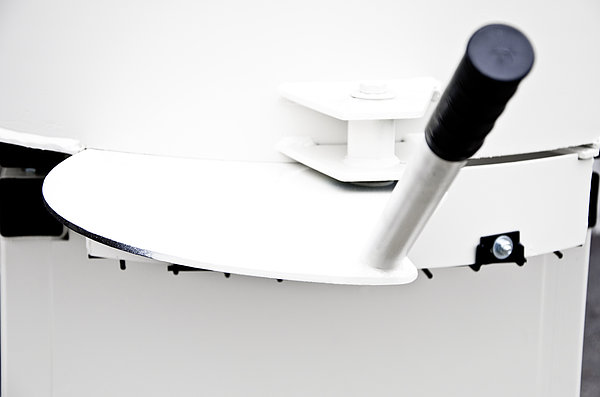

Fast Discharge
The segment slide gate in the drum base ensures quick and clean discharge.
Ideal for the following mix
- Concrete
- Refractory masses
- Spreading compounds
- Screeds
- Epoxy resins
- Terrazzo
- Steel fiber-reinforced concrete
- Industrial floors
- Granulates
- Grinding pastes
- All types of mortar
- Fireclay
- Acoustic plaster
- Restorative plasters
- Ready-to-use adhesive plasters
- Spray plasters
- Glue
Technical Data
| DZ 60VS LICHT | DZ 60VS KRAFT | |
|---|---|---|
| Item no. | 19645 | 20085 |
| Motor | 230V, 2,00kW | 400V, 2,20kW |
| Gearbox | 40 ¹ / min | 40 ¹ / min |
| Drum capacity | 100 l | 100 l |
| Mixing amount | 60 l | 60 l |
| Overall height | 1215 mm | 1215 mm |
| Overall width | 675 mm | 675 mm |
| Overall length | 825 mm | 825 mm |
| Drum diameter | 642 mm | 642 mm |
| Drum height | 310 mm | 310 mm |
| Filling height | 1215 mm | 1215 mm |
| Drainage height | 650 mm | 650 mm |
| Weight | 162 kg | 162 kg |
| Paintwork | RAL 1013 | RAL 1013 |
| Tyres | Solid rubber | Solid rubber |
| Miscellaneous | Hinged protective grid | Hinged protective grid |
Pan mixer
THE HIGH-PERFORMANCE ONES.
Our compulsory mixers deliver efficient, consistent, and reliable mixing of a wide range of materials. The specially developed 4-arm mixing system with individually adjustable mixing components ensures firstclass, homogeneous results – regardless of mixture design or material type. Our CE-compliant mixers are extremely robust, maintenance-free, and low-wear – built for continuous operation on construction sites, in industrial environments, or in laboratories. From compact all-rounders to high-performance large mixers – we provide the right solution for every challenge.

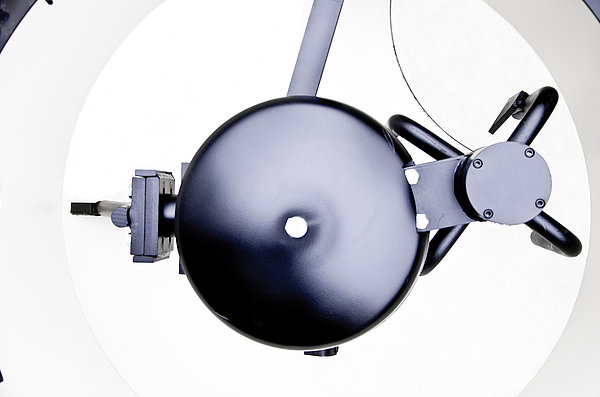

Robust 4-arm mixing system
• Mixing star with high mixing performance
• Outer scraper for edge-to-edge mixing
• Bottom scraper for complete material capture
• Spring-loaded bottom scraper for flexible adjustment
Certified safety
• Foldable protective grid with limit switch
• Robust discharge safety grid
• Restart protection in case of voltage drop
• Fully CE-compliant

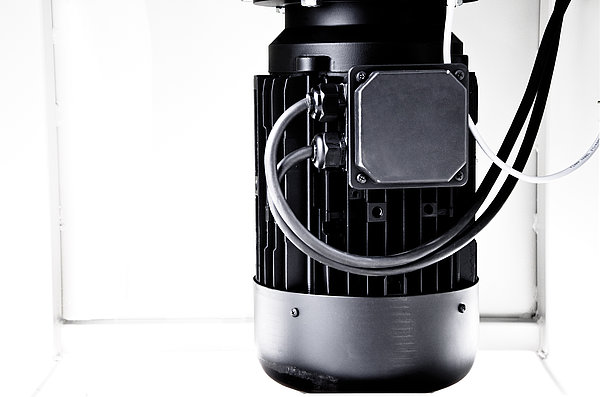

Maximum power
• Industrial motors up to 37 kW
• Maintenance-free gear units
• Consistent mixing performance under full load
• Designed for continuous operation
High user-friendliness
• Robust, low-maintenance design
• Intuitive operation and easy handling
• Wide range of mixer types to suit any requirement
• Reliable worldwide support
